Supporting Equipment

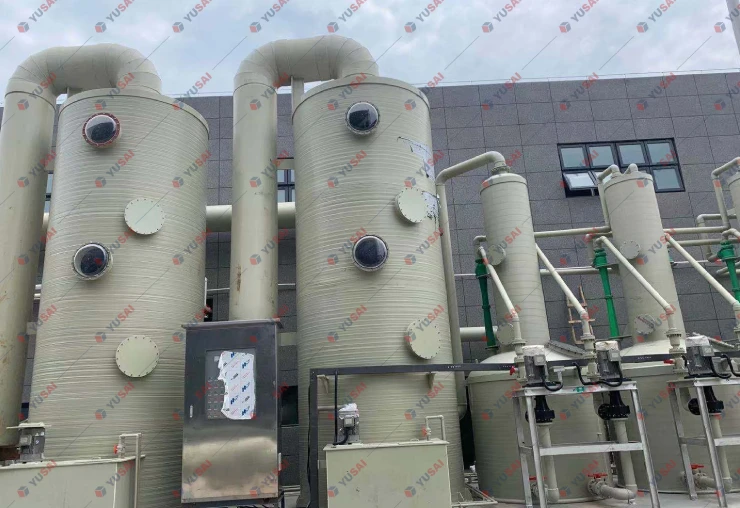

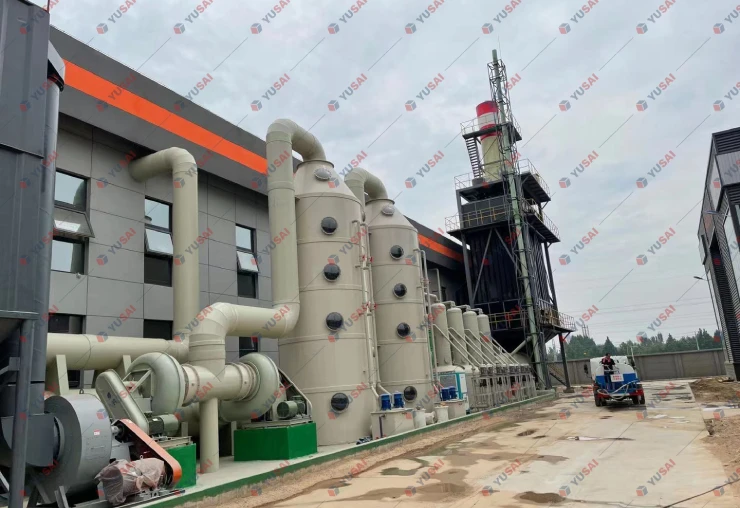

Acidic and Alkaline Gas Treatment Equipment

Patent Number: ZL2017 2 1869403.5. The acid-base exhaust gas treatment equipment is designed to handle high-concentration nitrogen oxide exhaust gases generated from aqua regia dissolution reaction kettles, nitric acid impurity removal reaction kettles, etc. It can reduce nitrogen oxide exhaust gases from 20,000 ppm to below 150 ppm.

Features and Advantages

  1. Double-walled spray tower;
  2. Capable of treating low-concentration exhaust gases such as HCl, Cl₂, SO₂, and ammonia;
  3. High absorption efficiency, reaching up to 99.5%, ensuring compliance with emission standards;
  4. After absorbing nitrogen oxides, the reagent generates nitrogen, carbon dioxide, and water, with no secondary pollution;
  5. The main body of the equipment is made of high-performance polypropylene material with added anti-aging agents, significantly extending the equipment’s service life;
  6. The equipment occupies a small overall footprint, uses inexpensive and readily available reagents, and has low operating costs.

Technical Parameters

ModelAir Handling Capacity (m³/h)Manufacturing ProcessOthersMaterial
JQ-SW-1000010000EnlaceIt depends on the operating conditions.PPH
JQ-SW-2000020000
JQ-SW-3000030000
