Technological Advantages
1. Low-Concentration Metal Solution Processing Capability
Achieves higher production efficiency than traditional electrolytic technologies, effectively enriching valuable metals across a wide concentration range (from as low as 0.x g/L to several hundred g/L).
Demonstrates unparalleled technical advantages in copper-nickel separation and copper-silver separation.
2. Enhanced Tolerance to Solution Contaminants
Capable of extracting high-purity metals from solutions containing impurities.
3. Multi-Metal Extraction and Selective Electrowinning
Extracts multiple metals simultaneously while enabling selective electrolysis based on solution composition.
Produces cathode products in various forms (plates or metal powders) tailored to solution concentration.
4. Modular Design and User-Friendly Operation
Features a modular structure for easy installation and scalability.
Simplified operation reduces technical barriers for operators.
Model Parameters
| Product Model | Product Name | Specifications (mm) | Rated Voltage | Power | Weight（kg） |

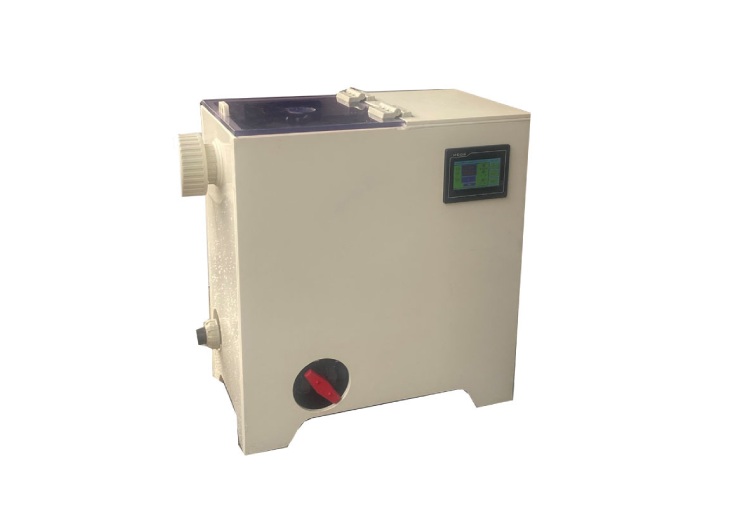

| JQ-DJC-L1 | Cyclone electrowinning cell | 450*300*600 | 380V | 1.5kw/h | 45kg |
| JQ-DJC-L3 | Cyclone electrowinning cell | 1140*1010*800 | 380V | 4kw/h | 135kg |
| JQ-DJC-L4 | Cyclone electrowinning cell | 1520*1010*800 | 380V | 5.5kw/h | 180kg |
